Home » Equestrian Products » Frontages » Full Height Swing Door
Full Height Swing Door

Full Height Swing Door

F093 2003 14 - 2970mm post centres (10' approx) plastic
  • Standard height: 2340mm
  • Standard width: 2970mm post centres
  • Standard width: 3570mm post centres
  • Standard width: 4170mm post centres
  • 1285mm swing style provides excellent access
  • Recessed handle to prevent the horse from being able to open the door
  • Kick bolt to give the swing door extra strength
  • 70mm x 70mm posts provide the stabling with rigidity and strength
  • Full height swing door

    Full Height Swing Door

  • Full Height Swing Door

    Full Height Swing Door Dimensions

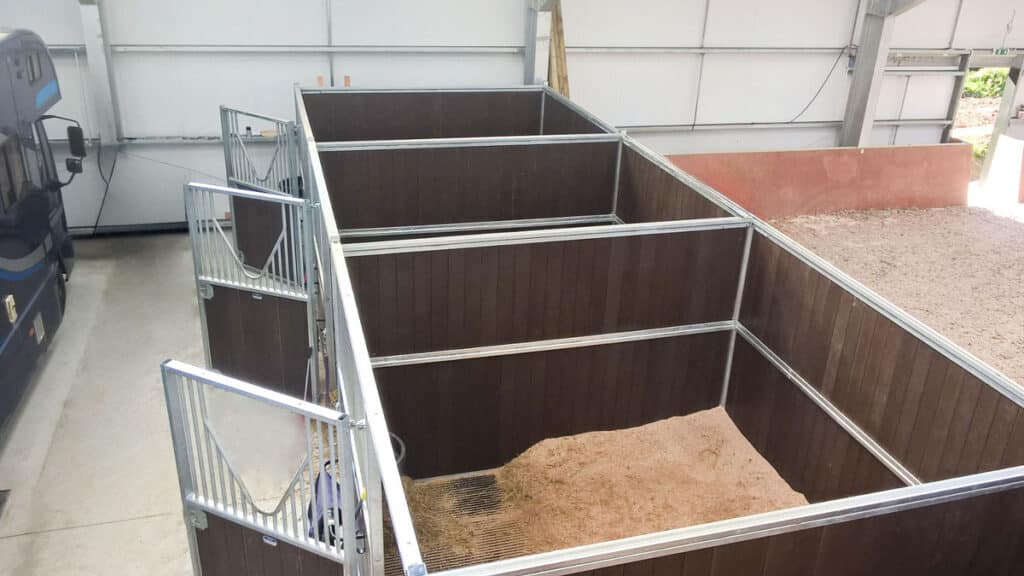

  • full height swing door in situ
  • swing and sliding doors

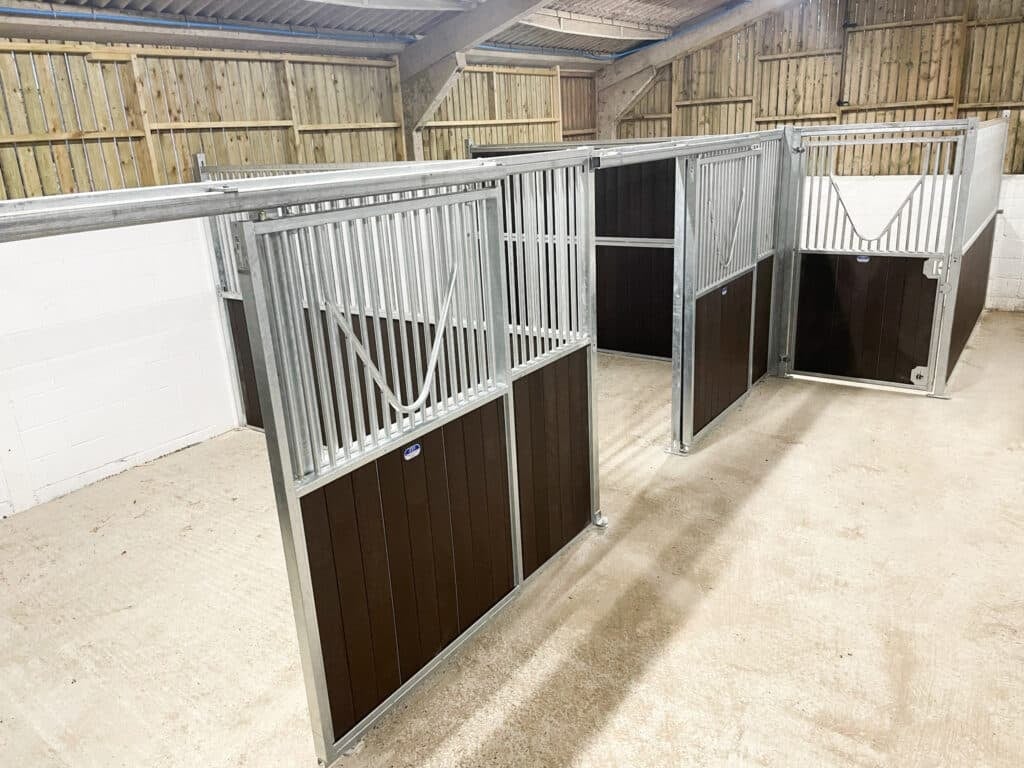

    Sliding door frontage with full height swing door frontage (corner)

Overview

Moorland front with full height swing door, panel and 2 (no) posts

Stables are supplied in kit form and require assembly on site.

IAE have been manufacturing Equestrian Stabling for over 25 years. Our long-standing position within the industry, combined with the undertaking of many prestigious equestrian projects, has enabled us to refine our Equestrian range to be durable, versatile and excellent value.

Drawing on some of our best previous concepts and design features, we now offer the Moorland Stabling range, which comprises of a variety of frontages, partitions and accessories. The Moorland range is designed to be a modular and standardised solution, allowing you to purchase the individual items you need and combine them to create your optimal solution. All aspects of the Moorland stabling range are manufactured using a combination of advanced manufacturing technology and high-quality materials, ensuring that the stabling you purchase will stand the test of time.

Key considerations have been accounted for whilst designing this range, which includes being able to accommodate for a fall of 50mm across frontages or partitions as well as the option to achieve a bespoke layout by using our various panel designs in conjunction with our unique bracket which allows for panels to be cut to special lengths.

  • 1285mm swing style provides excellent access
  • Recessed handle to prevent the horse from being able to open the door
  • Kick bolt to give the swing door extra strength
  • 70mm x 70mm posts provide the stabling with rigidity and strength
  • F093 2003 14 - 2970mm post centres (10' approx) plastic
  • F093 2003 15 - 3570mm post centres (12' approx) plastic
  • F093 2003 16 - 4170mm post centres (12' approx) plastic
  • POST TO FINISH RUN
  • F093 2002 81 - End Post
