AG-fit | AG-5 Primary

1000112-01 - AG-fit Primary 310mm

1280mmHauteur
60x60mmHang stile
60x40mmVertical end filler

Top/Bottom Rails Diameter 60.3mm
Intermediate Rails 48.3mm
Fully welded sleeve stiles compatible with existing IAE hang post (25mm hooks)
4 sleeves per stile allows 305mm rise

Find a stockist

Ajouter à la liste de souhaits

Ag-fit installation, operation & maintenance manual

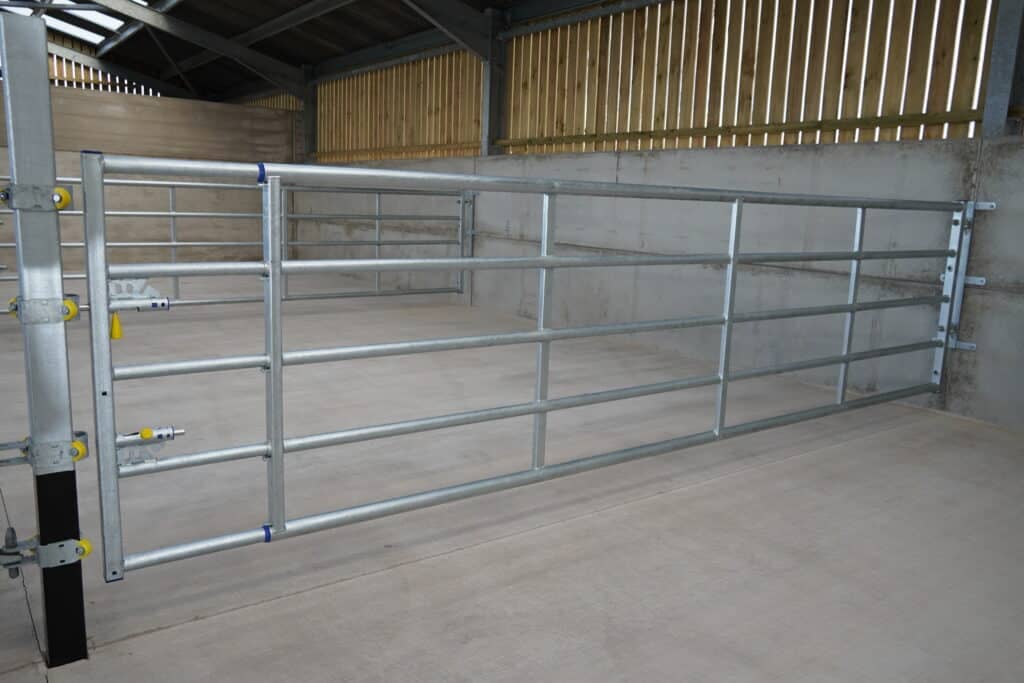

AG-5 Primary
AG-5 Primary hinge pin with chain
AG-5 Primary with AG-5 Passage Gate Insert
AG-5 Primary with AG-5 Calf Creep Insert
AG-5 Primary with AG-5 Gate Insert

Vue d'ensemble

The AG-5 Primary is designed to combine telescopically with an Insert to create the desired length AG-5 Gate or Panel. They are not designed to be variable length when in use.

Primary’s are available in 5 different lengths, varying between 310mm and 4718mm, which is then assembled with an insert to make a gate or panel between the length of 550mm – 6000mm.

About AG-fit:

The new AG-fit range from IAE is a modular off the shelf solution for all your cattle housing requirements. Primarily designed for loose housing, but also suitable for a wide variety of other applications. The easily assembled AG-fit range features an extensive collection of modular 5 rail two-part extendable gates and panels (made from AG-5 primary and inserts), waterers, posts and associated brackets to create a multitude of penning arrangements, all available from your local IAE AG-fit stockist.

To watch our video about the AG-fit product range, including information about how the primary slots together with different inserts to form a gate or panel, click here.

AG-5 Primary Variants

Longueur (mm)	Primary Product Code	Infillers	Taille de l'emballage
310	1000112	0	2
718	F002 2001 01	0	4
1718	F002 2001 02	0	8
2718	F002 2001 03	1	8
3718	F002 2001 04	2	8
4718	F002 2001 05	3	2
