Bramka 2 w 1

F010 2015 40 - 3035L 2 IN 1 GATE
  • 1200mmWysokość
  • INCLUDES WIDTH OF PEDESTRIAN GATEOver width
  • 950mm , WIDTH -700mmIntegral step through gate height
  • 200mmStep over height
  • Available in three lengths: 3000mm, 3600mm and 4600mm
  • Galvanised gate offers the product longevity in even the most rural of locations
  • Pedestrian gate leaf: 950mm high x 700mm wide
  • The pedestrian gate will automatically close from fully open
  • 2 in 1 gate

    Bramka 2 w 1

  • Gate in situ

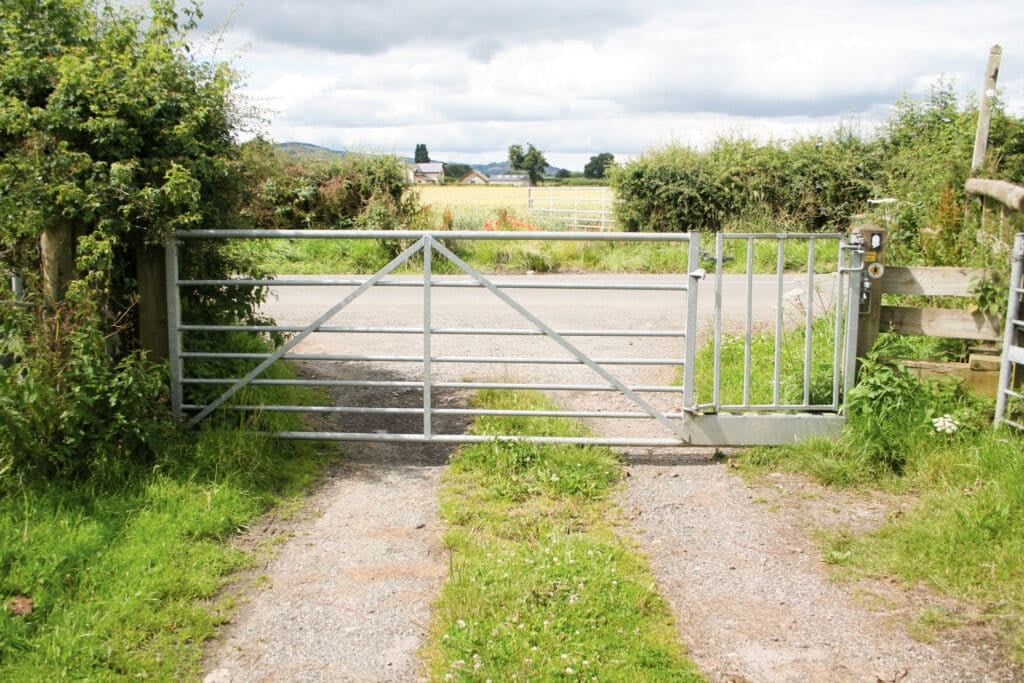

    Gate in Field Situ

  • Gate on Track

    Gate in Road Situ

Przegląd

2-in-1 Gates are designed to incorporate a pedestrian gate into a field gate, allowing pedestrians unlimited access to the right of way and vehicles access when required. This can be particularly useful in spaces where there is not enough room for a field gate and a pedestrian gate.

The 2-in-1 Gate incorporates a self-closing step gate into a standard field gate. The field gate can remain locked whilst still allowing pedestrians to access the right of way through the small pedestrian gate.

  • Available in three lengths: 3000mm, 3600mm and 4600mm
  • Galvanised gate offers the product longevity in even the most rural of locations
  • Pedestrian gate leaf: 950mm high x 700mm wide
  • The pedestrian gate will automatically close from fully open
  • Installed height 1200mm
  • When in the closed position, the pedestrian gate is secured using an Easy Latch
  • 139mm diameter hang and slam post required to complete the system
  • For an additional cost, the opposite handed version can be made to order
  • F010 2015 40 - 3035L 2 IN 1 GATE
  • F010 2015 43 - 4559L 2 IN 1 GATE
  • F010 2015 41 - 3643L 2 IN 1 GATE
  • F017 2004 30 - 139.7mm o/d D-Latch post
  • F017 2004 16 - 139.7mm o/d Hang post c/w inverted top hook
  • F017 2003 30 - 114.3mm o/d D-Latch post
  • F017 2003 16 - 114.3mm o/d Hang post c/w inverted top hook
